1. Origin: China
2. Certificate: ISO 9001
3. Usage:It is widely used in laboratories, schools, institutes, hospitals and many other places.

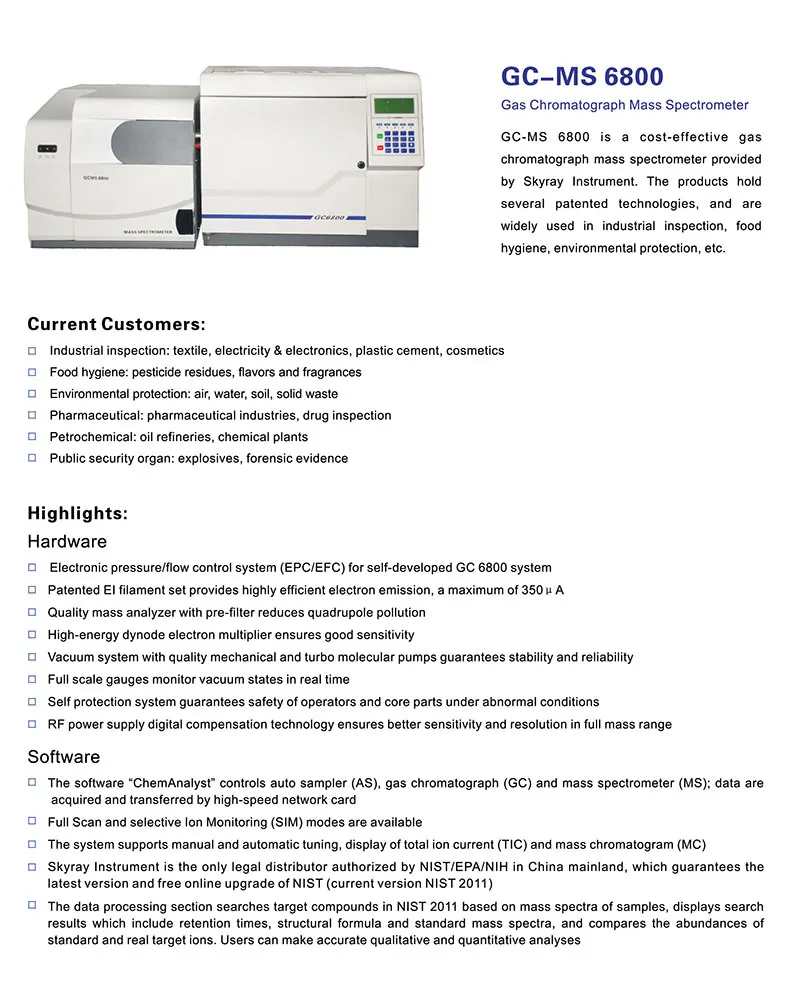

Gas Chromatograph-Mass Spectrometer
Art.No.	MS-6800
GC Technical indicators:
Injection port temperature	450 ℃
Pressure control range	0-100psi,+0.002psi
Pressure control mode	Electronic pressure control(EPC),support CV and CC
Bypass mode	distributary and not split injection port, the largest tap - 1000:1
Column temperature box operating temperature	room temperature + 4 ℃ ~ 450 ℃
Heating rate	up to 120 ℃ / min
Temperature programmed heating platform	7stages/8 platforms
Automatic sampler	Optional
MS technical indicators:
Ionization energy (EI)	5 eV - 250 eV (adjustable)
Quality range	1.5-1000 amu
Resolution	unit mass resolution
Ion source temperature	100-350 ℃
Filament emission current	0-350 ua
Temperament interface temperature	Max.450 ℃
Quality shaft stability	+ / - 0.10 amu / 48 HRS
Sensitivity	Full scan, 1pg OFN at m/z 272 with S/N ≥30：1 (RMS)
Scan rate	Up to 10000 amu/s
Vacuum	Turbo molecular pump（67 L/s）
Detector	High-energy dynode electron multiplier
